- playground measurements: L 10180 mm x S 5350 mm x H 3430 mm
- material: wood (FSC certificate)
- posts: 90 mm x 90 mm (LOW - CARBON aluminium profile 90x90 mm with eloxed surface)
- platform H: 1800 mm
- slide, slide tunnel: recycled and UV- stabilised polyethylene (PE), 2 pcs
- swing module
- climbing walls
- bridge
- steps
- tunnel (100% recycled and UV- stabilised HDPE sheet)

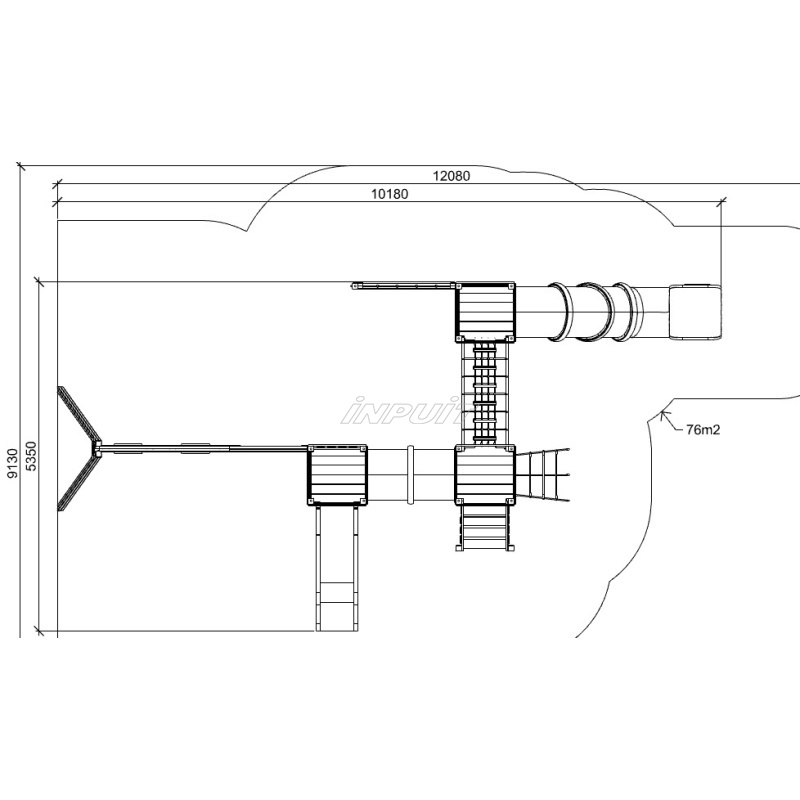

- safety area: 12080 mm x 9135 mm / 76 m2
- screws and connecting material: stainless steel
- color: black/wood
- assembly: on ground
- package measurements:
Options (not included):
- assembly (inpuit@gmail.com)
- transported in parts
Warranty period by materials:
- 50 years » aluminium poles
- 20 years » stainless steel supports (floors, steps)
- 10 years » other stainless steel parts, » HDPE/HPL panels, » wood-composite floors, » polyethylene parts (slides, roofs) – (limit of 3 years warranty on colour of plastic parts does apply)
- 3 years » steel reinforced nets and ropes, steel springs
- 2 years » rubber and rubber-coated parts, polyurethane parts, » moving parts » all other small parts such as, but not limited to: bearings, footholds, handrails, plastic joint caps, etc
Materials description:
- poles - 2,5 mm thick eloxed aluminium profile 90 x 90 mm with rounded edges with a center line for attachment of side panels.
- floor frame and step frame- stainless steel frame with 1,5 mm thickness, rounded edges
- floors – wood composite anti slip flooring 24 mm thickness
- side panels/roofs (small) - UV stabilized HDPE (High Density Polyethylen) with 12, 15, 19 mm thickness, double coloured
- roofs (big) - UV stabilized polyethylene (PE)
- slides other plastic parts - UV stabilized polyethylen (PE)
- connecting material– stainless steel
- ropes – type hercules, with 8 steel rods, 16 mm thickness
- springs – eibach 20/400 mm
